INFORMATION
SHUNT CLAMP SPARK CABLE – 200A
GAMME
Connection accessories
TYPE
Clamps
SOUS-TYPE
For M8 screw connection
REFERENCE
TW2168
DESCRIPTION
* 1 lock washer with max. 25 mm opening for tightening by perforation of insulation on cable 35 to 240 mm ²

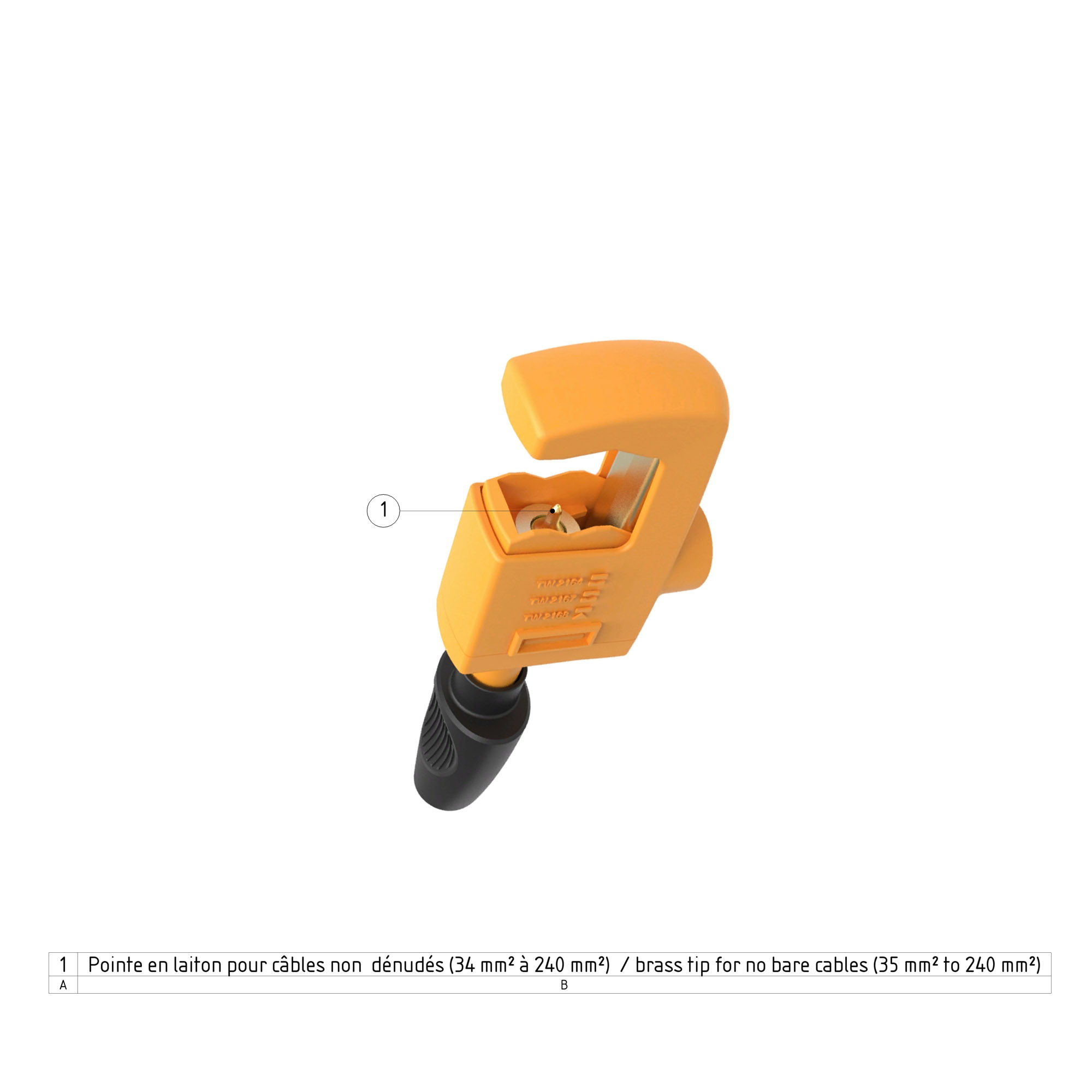

* 1 tip for perforation isolation allowing access to the core of the cable.
* 1 IP2X sleeve with spring return that does not require any intervention on the part of the user to protect the connection after connection.

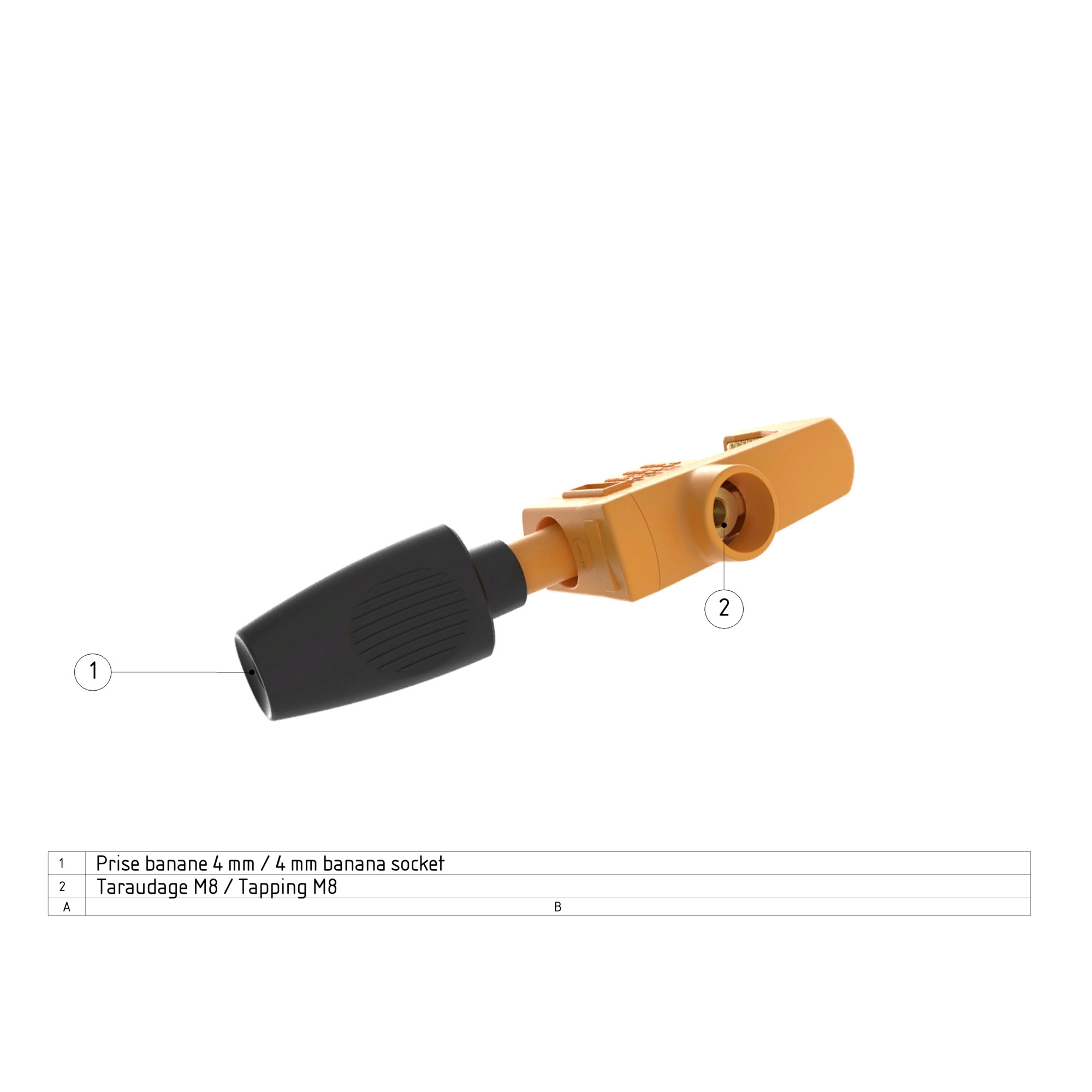

* 1 x 4 mm socket for banana plug integrated in the clamping handle for connection of a measuring device (or VAT)
* 1 x M8 female connection for connection of shunt cables equipped with male M8 toe.
UTILISATION
* Power connection by perforation of the insulation on a bare cable of cross-section 35 to 240 mm².
INTENSITE ADMISSIBLE :
200 A
TENSION NOMINAL :
1000 V AC and 1500V DC
ENCOMBREMENT :
Length of the clamp: 165 mm
MATIERES :
* Brass connection
* Insulation: High performance polycarbonate
