INFORMATION

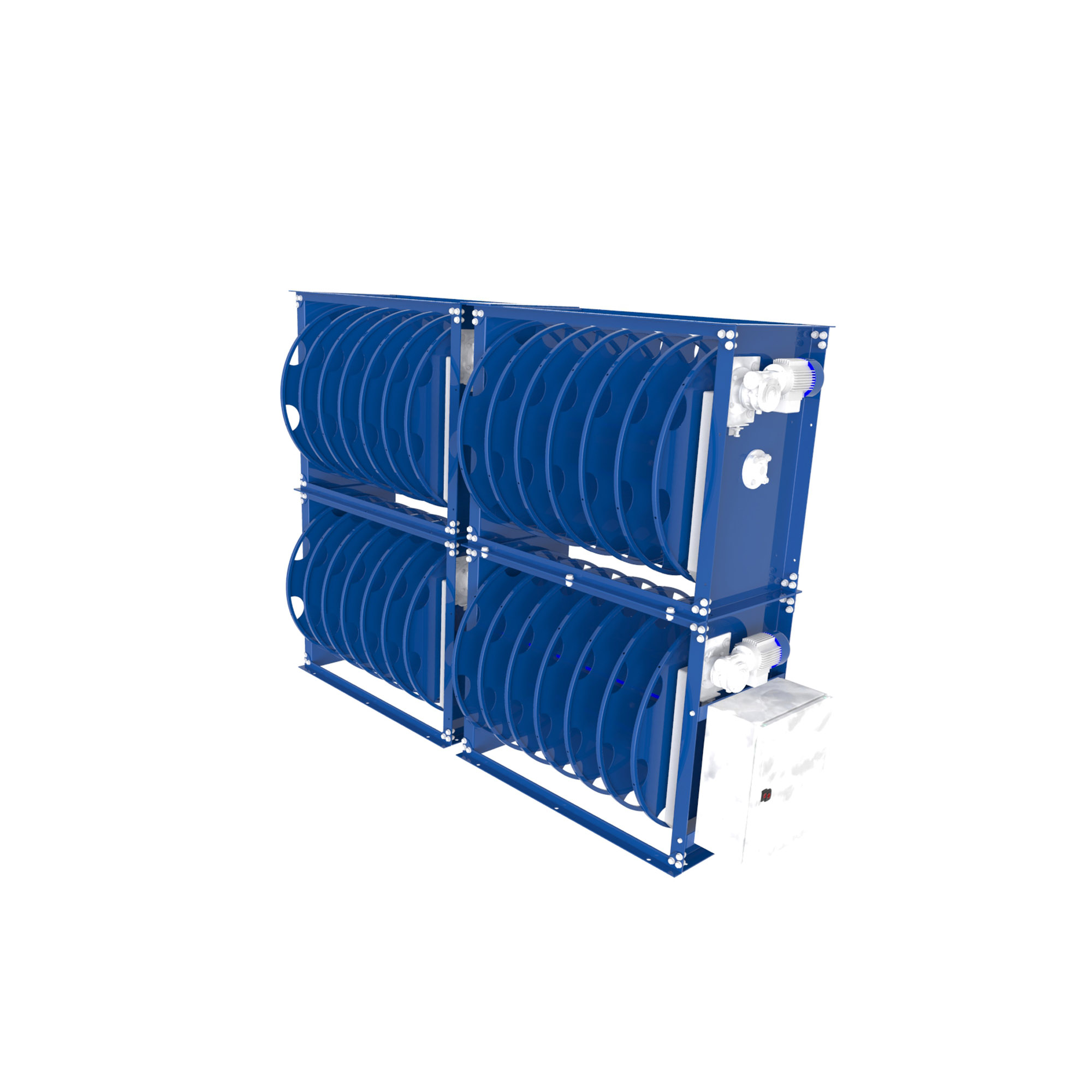

    Motorised roller reel with 4 modules x 6 coils 25m -185mm²
    GAMME
    Reels and Cable Protection
    TYPE
    Motorized
    REFERENCE
    TW8425-24
    DESCRIPTION

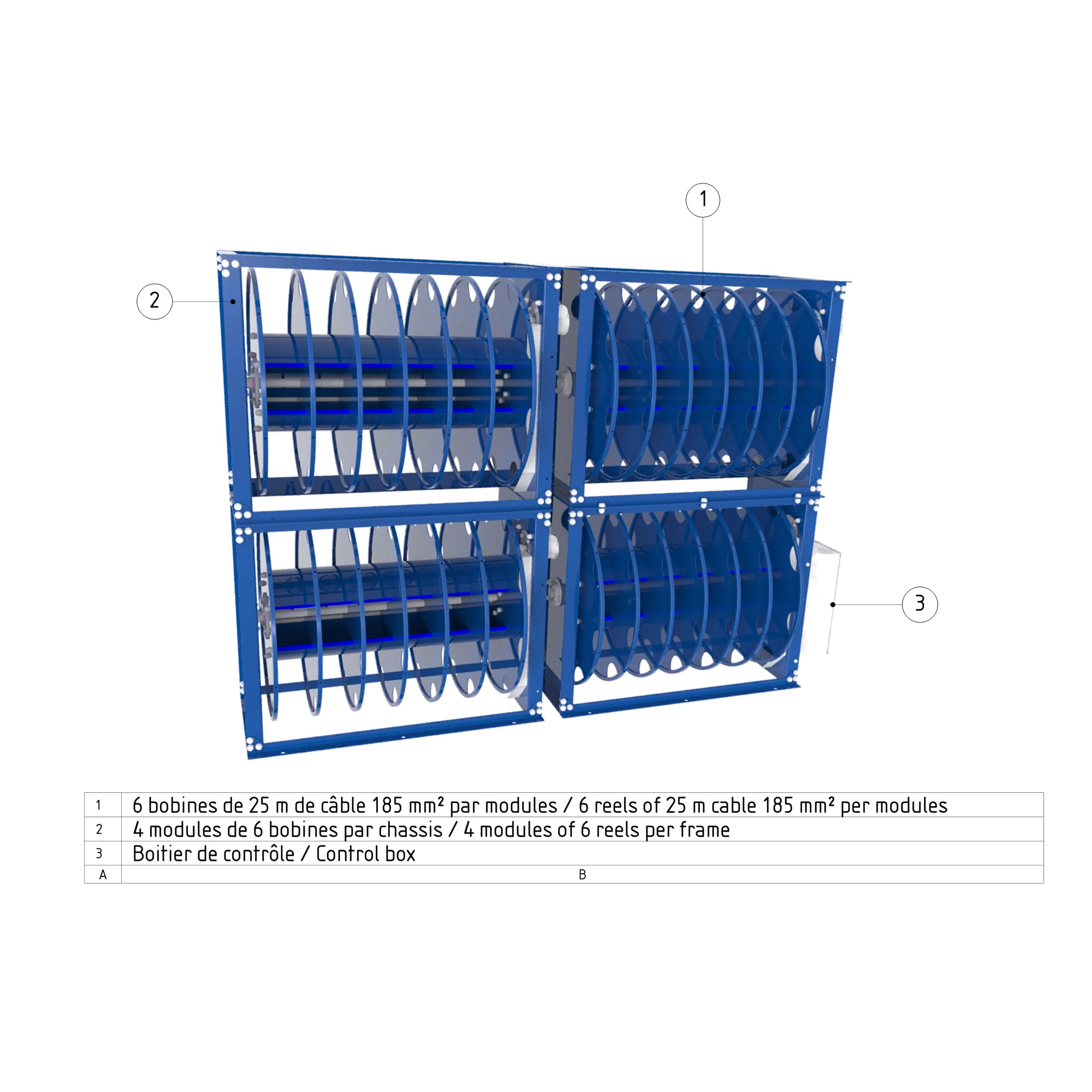

    * Motorised winding / unwinding system. * Pedal-activated uncoiling. * 25 m cable cross-section 185 mm² per coil. * 6 coils of cable per module. * 4 modules per chassis. * Housing in the drum for the protection of connectors SPECIFIC STUDY BASED ON YOUR NEEDS ON REQUEST
    UTILISATION
    * The reel allows for the storage of 24 cables of 185 mm² cross-section length 25 m easily and effortlessly. * This type of reel is intended to be positioned mainly in mobile generator type (GEM) response trucks.
    ENCOMBREMENT :
    2,590 mm x 1,780 mm x 800 mm
    TYPE DE CABLE :
    HO7RN-F
