INFORMATION

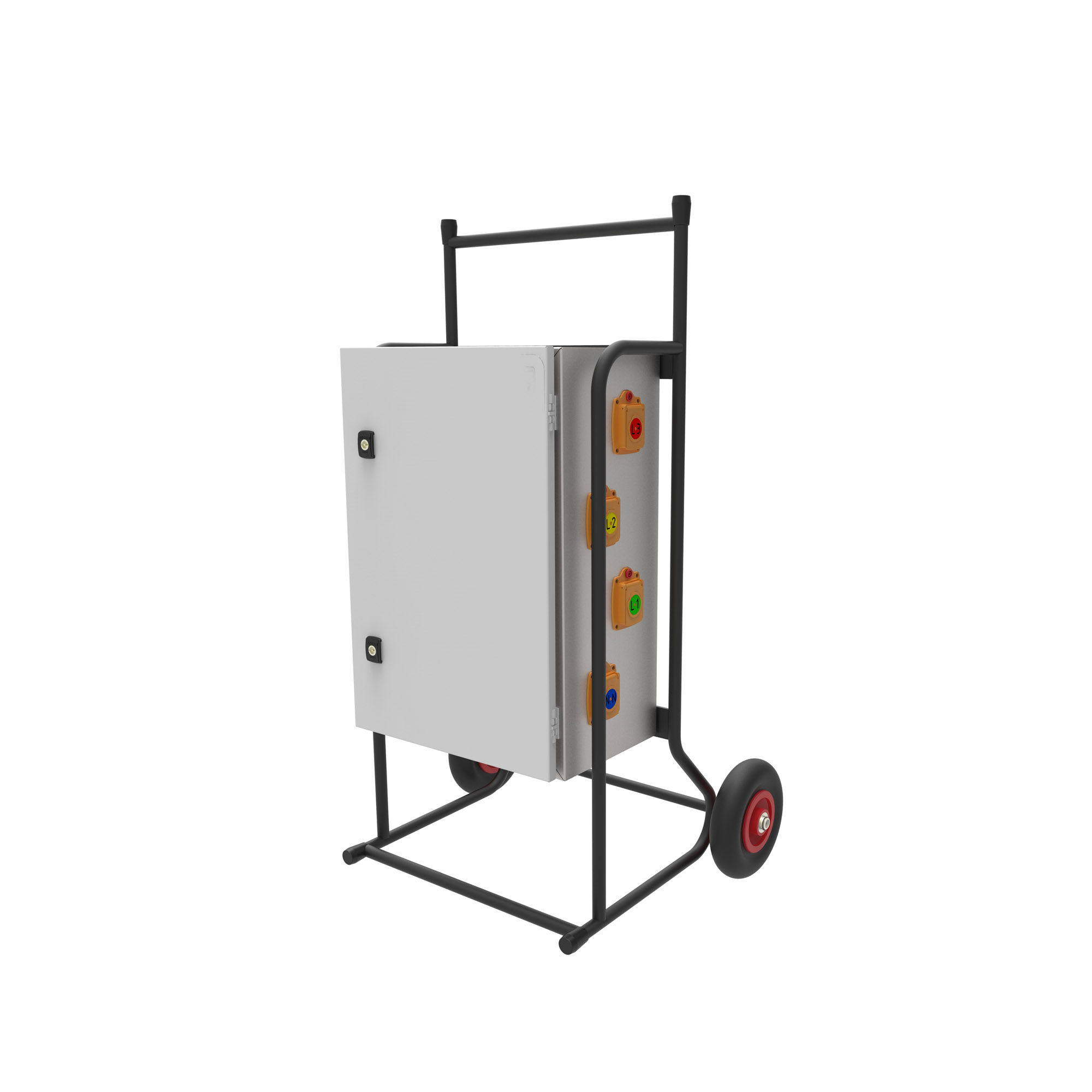

    MOBILE HEAD OF LINE PROTECTIVE CASE FOR M12 -400A CONNECTOR
    GAMME
    Wardrobe / Temporary box
    TYPE
    Wardrobe head end protection
    REFERENCE
    TW6509-M12
    DESCRIPTION

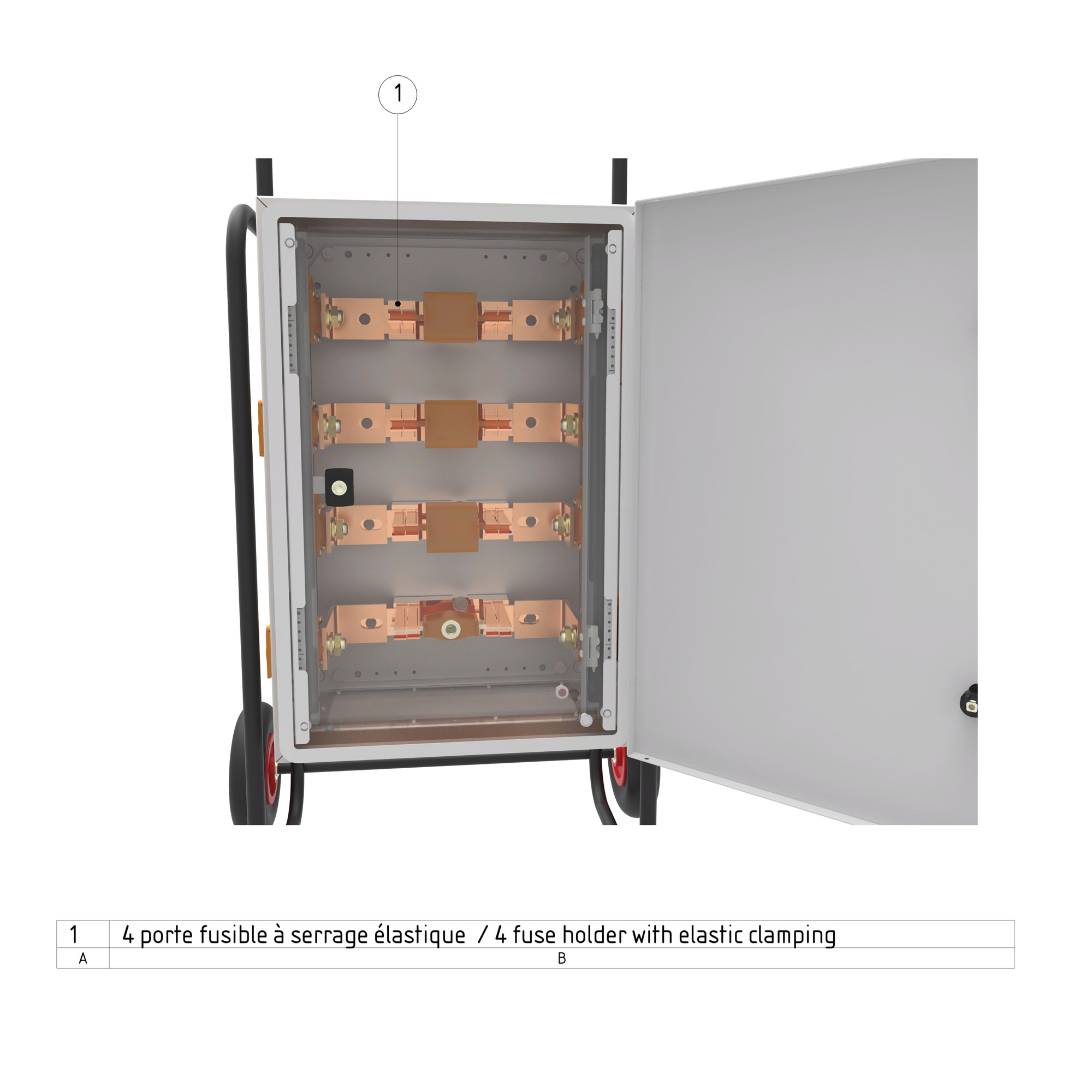

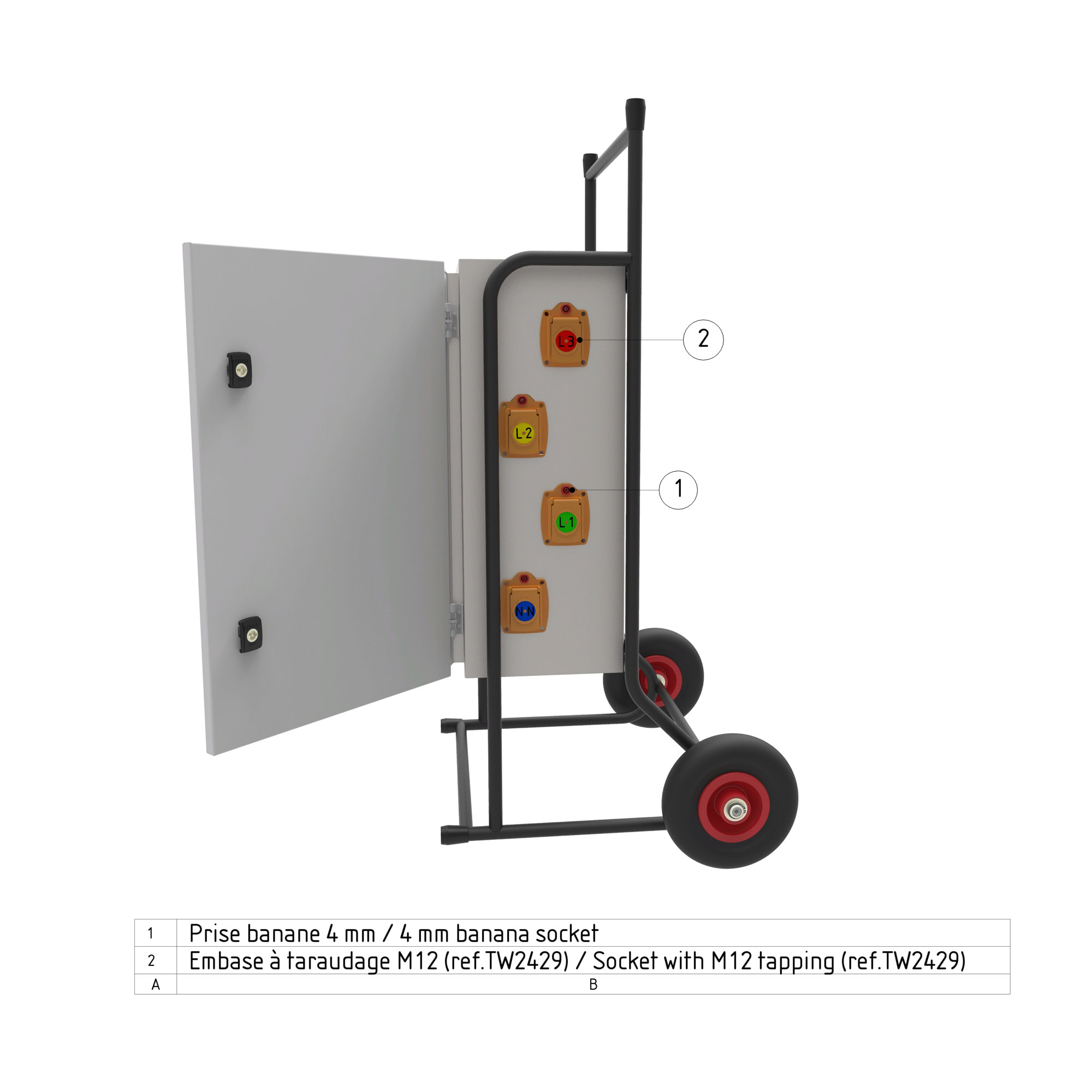

    * 4 fuse holders (Size 2 ENTRAXE 115 mm) with elastic tightening. * 8 x M12 connection sockets positioned on the sides of the cabinet and compatible with the M12 screw-connector (CV110 / CV250 / CV400) * 8 test points for checking the phase match and the absence of voltage (VAT). * 1 metal chassis equipped with 2 wheels for easy movement.
    UTILISATION

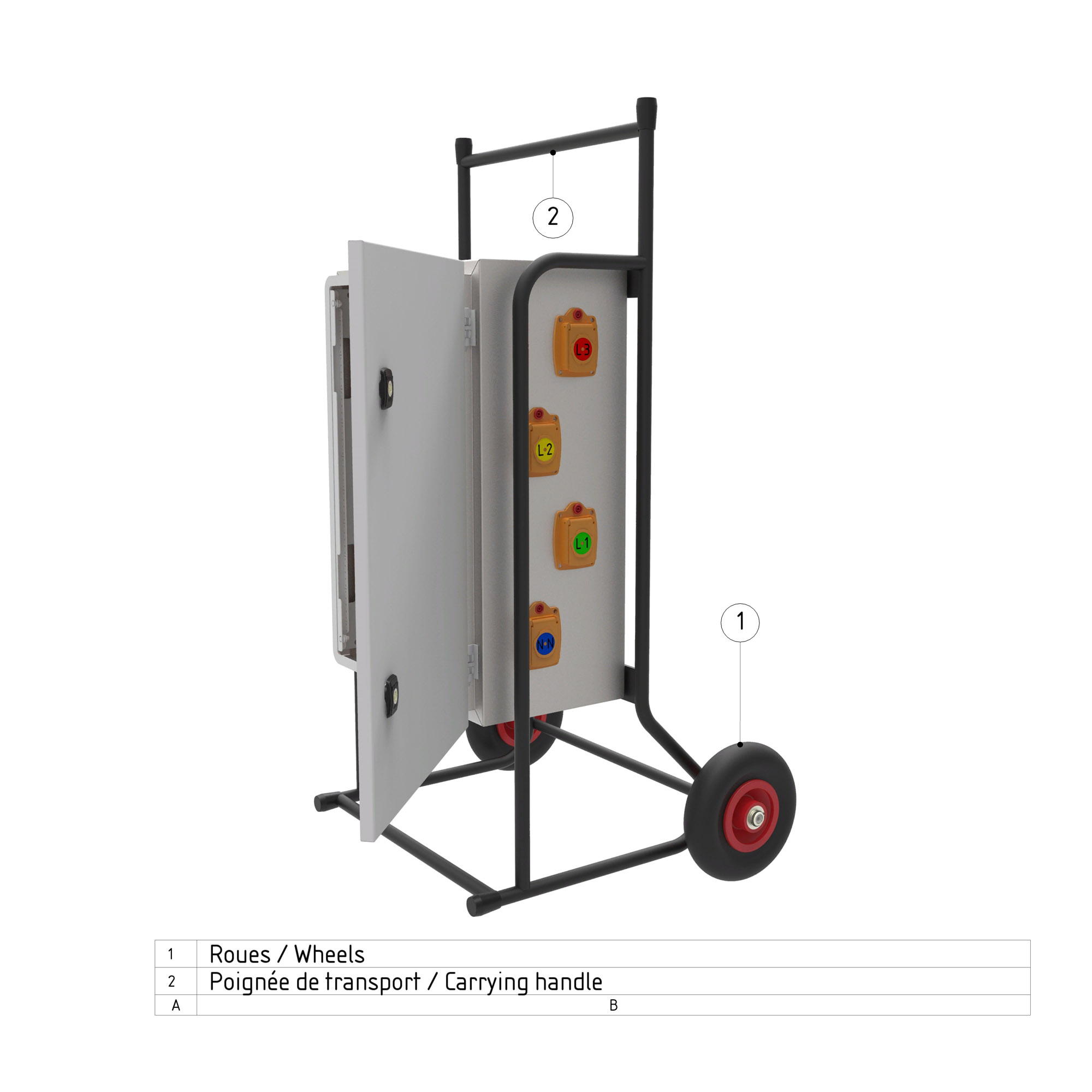

    * The case is intended to provide AMONT protection for the temporary replenishment circuit during troubleshooting operations on the low voltage (LV) grid. * The M12 connection sockets are located on the side of the box to allow for a closed box connection. * The door is removable. * The lock is triangular with a lockable barrel. * The case is equipped with two wheels and a handle for easy movement + 2 side handles. * All hardware with IP2X protection.
    INTENSITE ADMISSIBLE :
    400 A
    TENSION NOMINAL :
    1000 V AC and 1500V DC
    ENCOMBREMENT :
    1,080 mm x 515 mm x 655 mm
    MATIERES :
    * Steel chassis
