INFORMATION

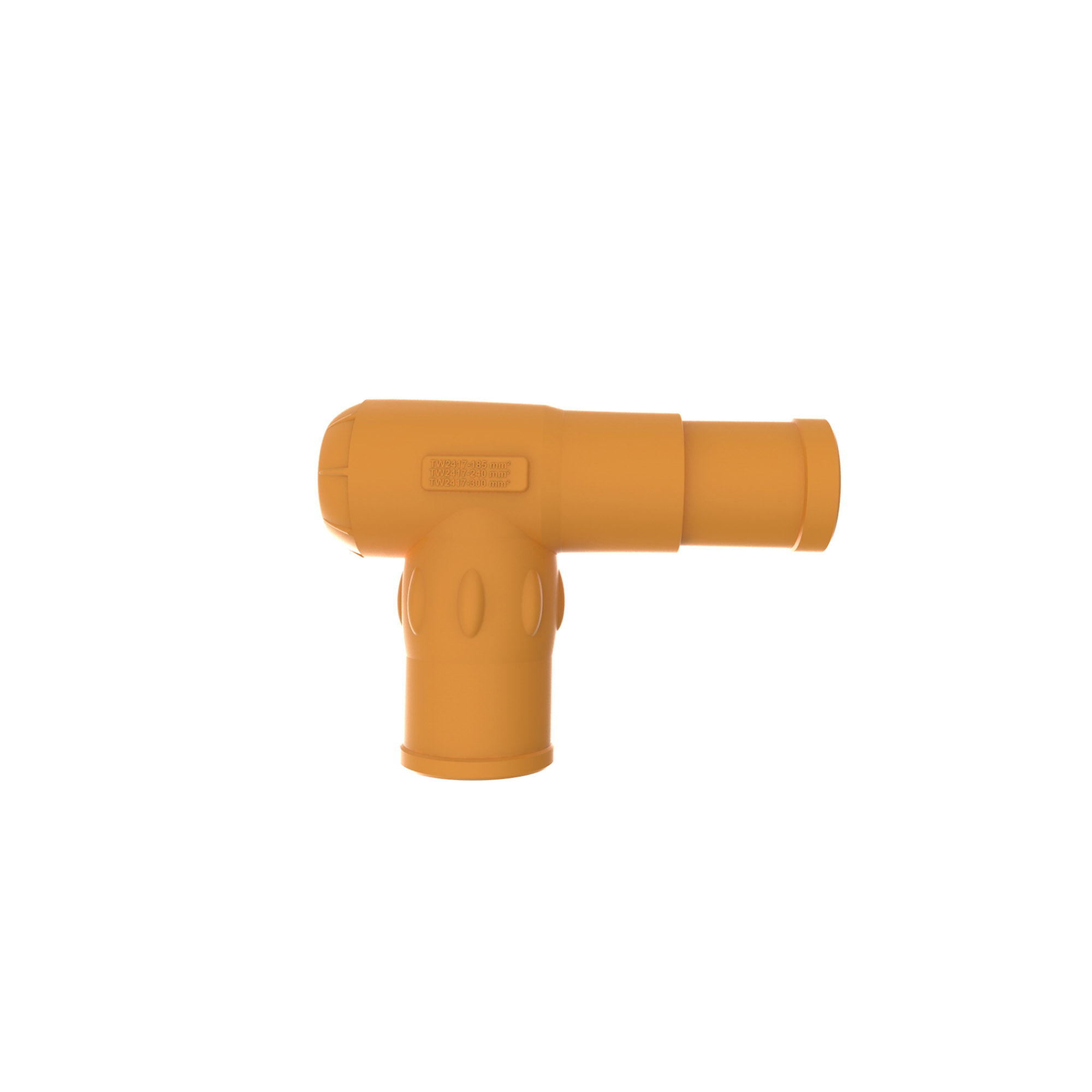

M16 connector screw – for CRIMPING CABLE HO7RNF 240 mm²
GAMME
Connectors and Sockets
TYPE
M16 screw connection
REFERENCE
TW2417-240
DESCRIPTION

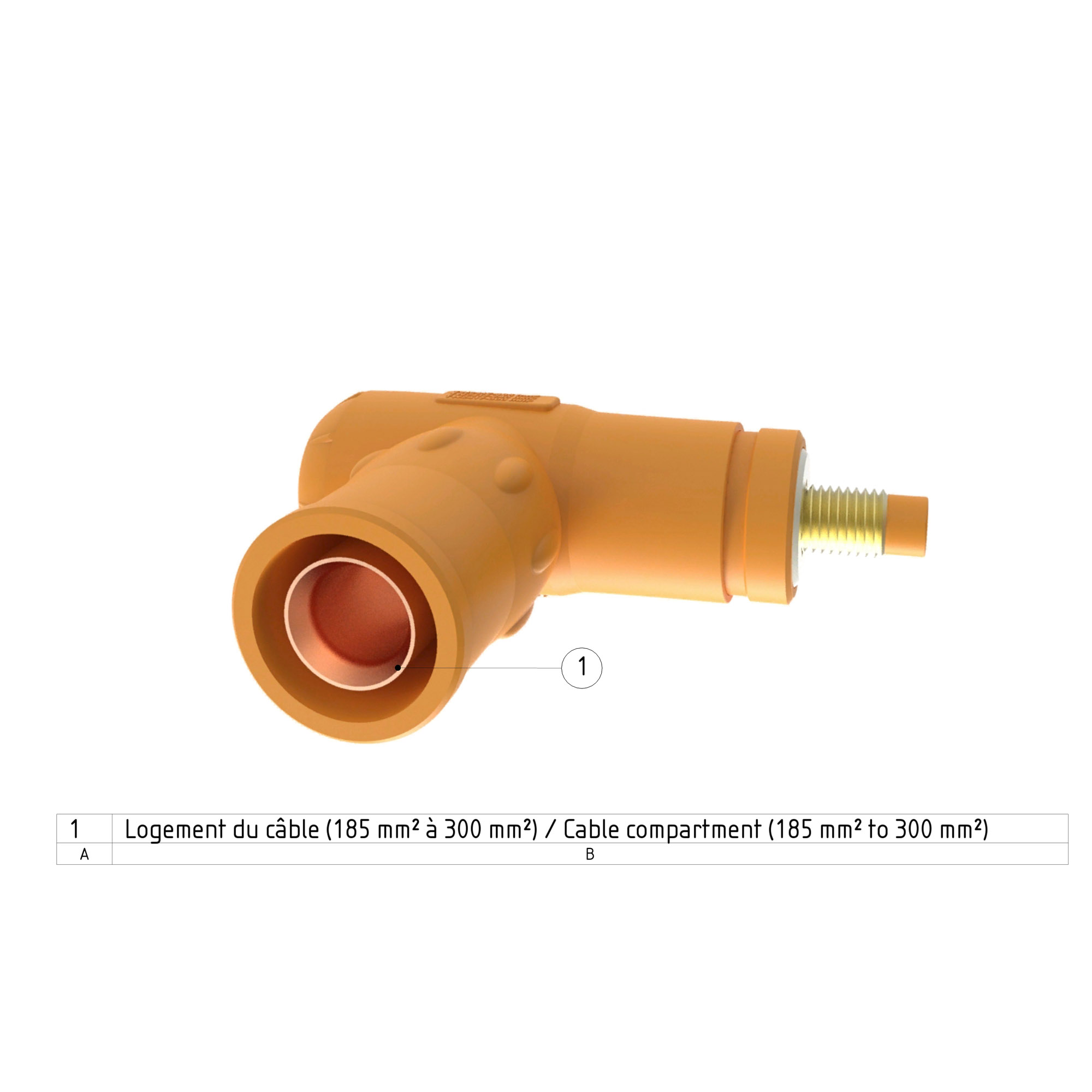

* M16 screw-on connector designed to be connected to the end of a HO7RN-F unipolar flexible cable with a cross-cross-section of 240 mm²
* Contains a contact surface with silver coating to ensure minimum contact resistance and reduce overheating related to transit of the current.

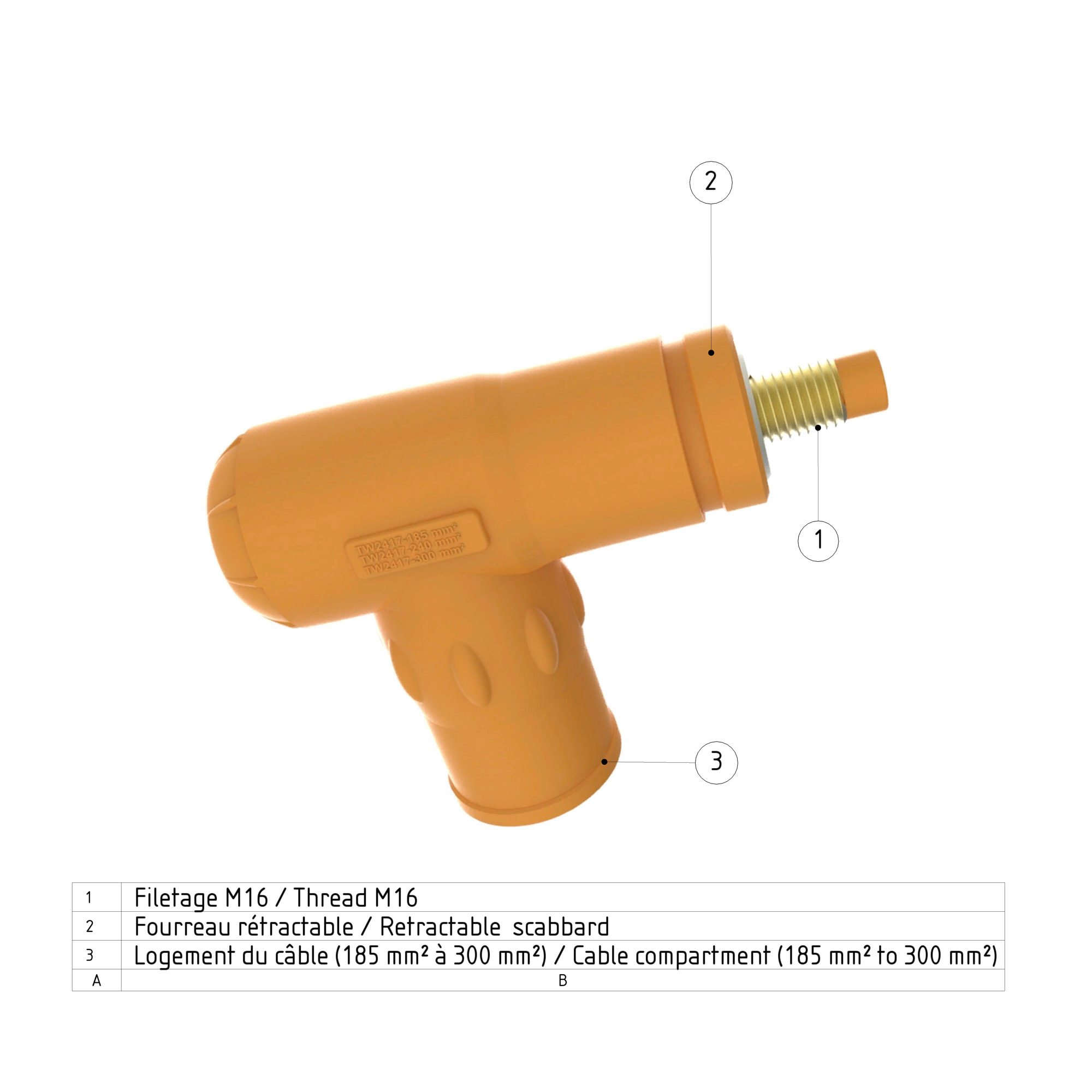

* Equipped with an M16 clamping screw using an insulated key (10 mm hexagon socket) with a torque limiter of 18 Nm, which allows the contact surface of the screw connector to be attached to the receiving part.
* Captive black protective cap.
UTILISATION
* M16 connector kit for making or repairing a shunt for 240 mm² cross-sectional cable.
INTENSITE ADMISSIBLE :
630 A
TENSION NOMINAL :
1000 V AC and 1500V DC
TYPE DE CABLE :
HO7RN-F
SECTION DU CABLE :
240 mm²
MATIERES :
* Copper connection + silver coating for perfect contact
* Insulation: high performance polycarbonate
