INFORMATION


    M12 FEMALE/FORK D12 MM ADAPTOR
    GAMME
    Connection accessories
    TYPE
    Adapters
    REFERENCE
    TW2383
    DESCRIPTION

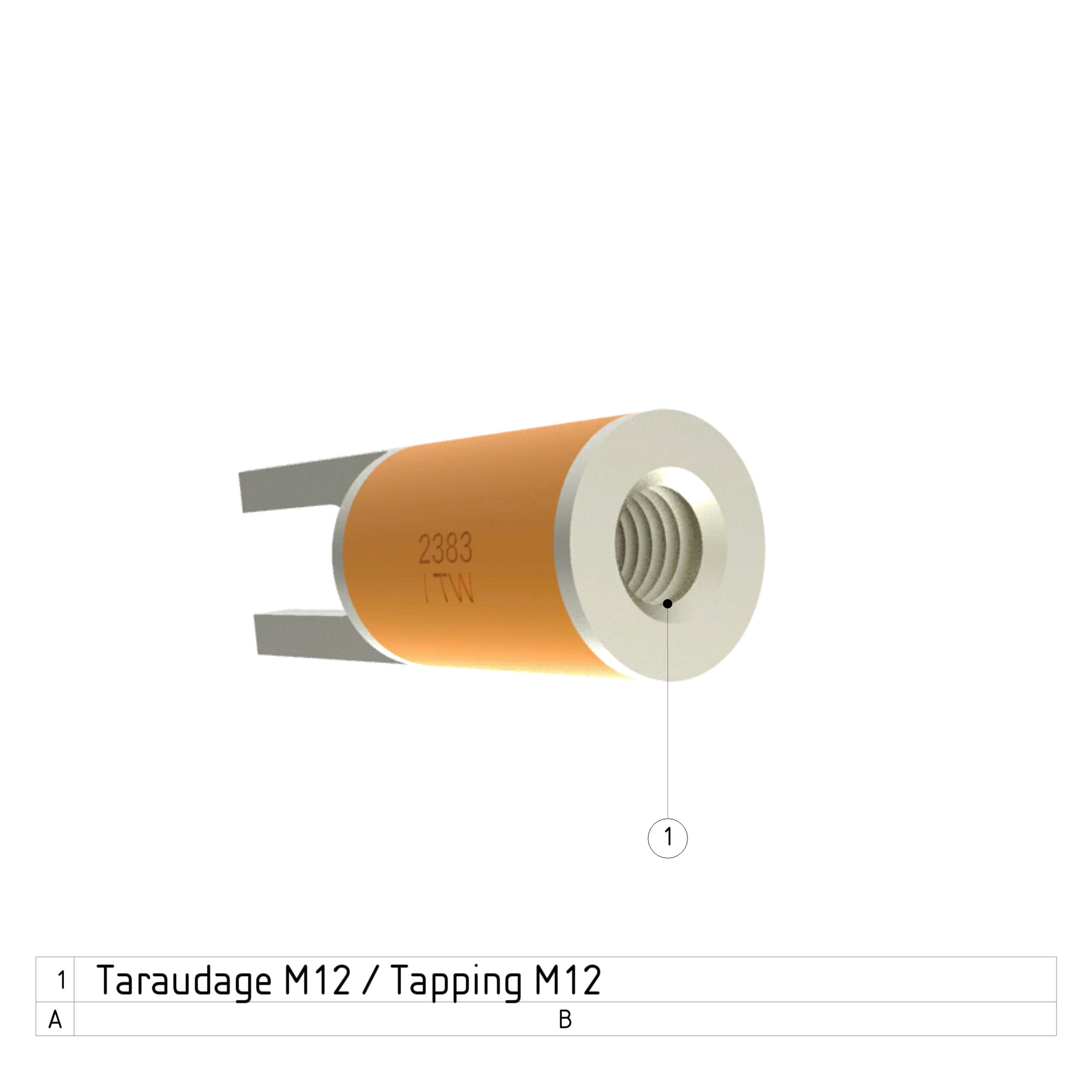

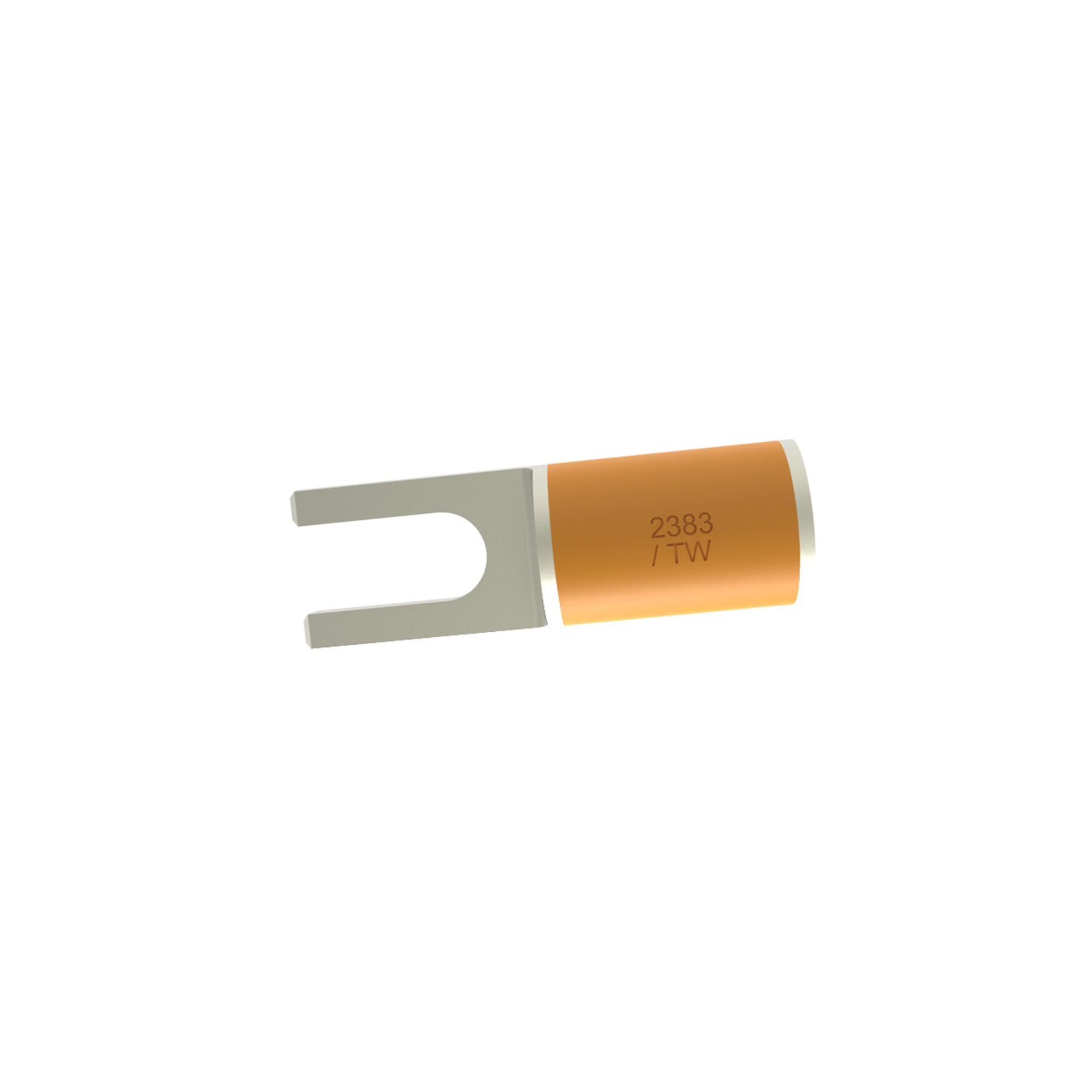

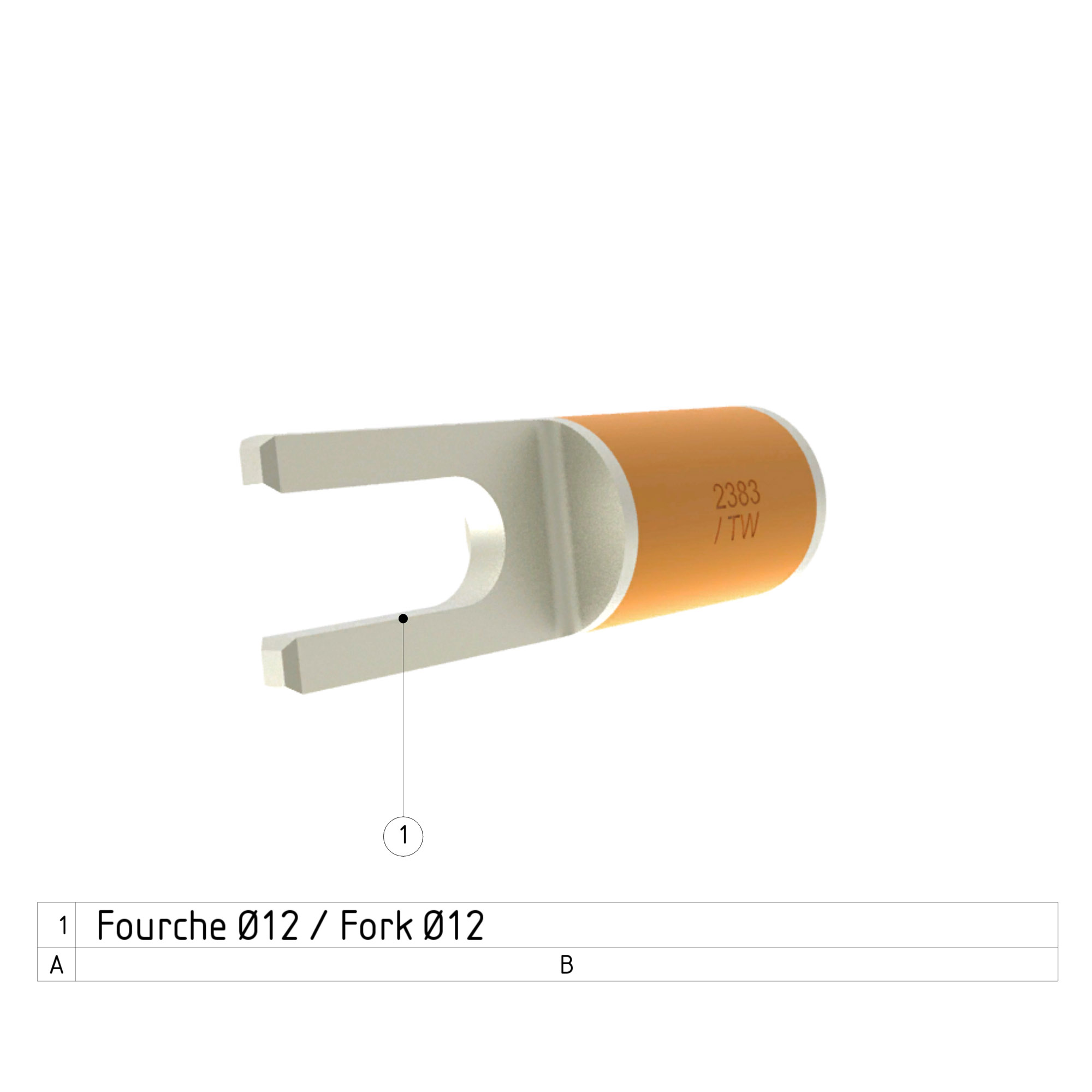

    * Adaptor with 1 M12 FEMALE end on one side and 1 fork terminal 12 mm end on the other
    UTILISATION
    * The adaptor is used to connect to a Male M12 connector. * Compatible with M12 screw connector ref: TW2415. * Used to interface (without complete disassembly of cables already present) between a connector type SHUNT TW4120 xxx with a bar set already equipped with cable connection and terminals (at the bottom of LV table for example)
    INTENSITE ADMISSIBLE :
    400 A
    TENSION NOMINAL :
    1000 V AC and 1500V DC
    MATIERES :
    * Brass connection + silver coating for perfect contact * Insulation: PA 6-6
